Structural strengthening method for beam, column, slab

Common structural strengthening methods for beam, column, slab: sticking steel plate, bonded FRP composite materials, post installed anchoring, enlarged section.

Slab strengthening


Cast-in-place plate

Prefabricated plate

Sticking steel plate +d10 anchor bolt

Bonding carbon fiber reinforced polymer FRP composites

New cast-in-place slab

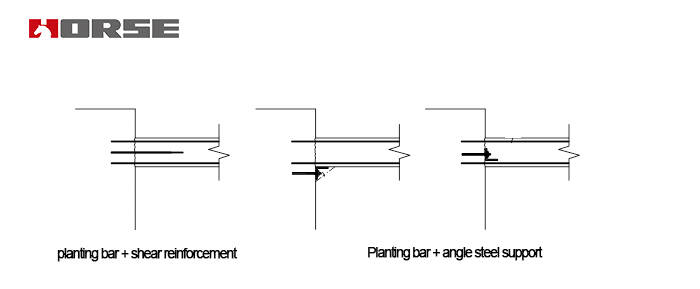

Post installed anchoring with injectable mortar + angle steel support, planting bar + shear reinforcement


injectable mortar

New cast-in-place slab strengthening

Column strengthening

Insufficient bearing capacity of column under normal pressure

Increase section, main reinforcement and stirrups.

Wet method of externally bonded steel: modified epoxy adhesive infusion + protective coating (cement mortar plaster)

Continuous bonding of carbon fibers along the full length of the ground (circumferential girding)

Insufficient bearing capacity of inclined section under column compression

CFRP strengthening, the fiber direction should be perpendicular to the longitudinal axis of the column.

Insufficient bearing capacity under large eccentric compression

CFRP strengthening, the fiber direction is aligned with the longitudinal axis of the column.

Column ductility insufficient seismic strengthening

CFRP strengthening, the circular bonding and bonding fiber composite material forms the circumferential girth as the additional stirrup.

Normal section reinforcement (water tower, water tank and closed structure) of tensile members

The fiber composite is externally bonded to the concrete surface of the tensile part, and the direction of the fiber is consistent with the tensile direction.
The outer steel plate is on the concrete surface of the tensile part, and the direction of the steel plate is consistent with the direction of the pulled steel bar.

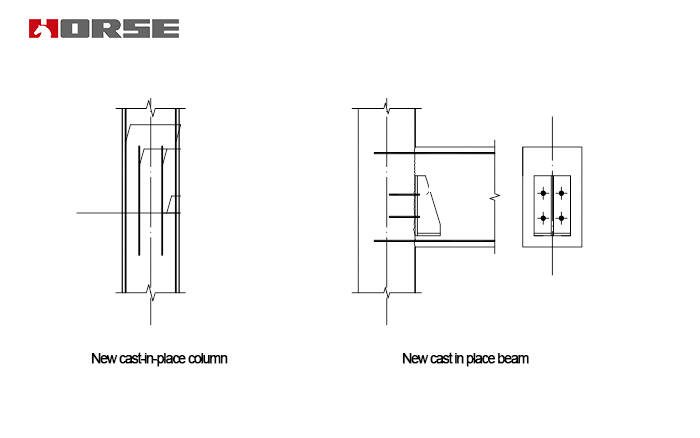

New cast-in-place column

Planting steel bar main reinforcement + shear reinforcement + stirrups.


Column beam strengthening

Beam strengthening

Insufficient bearing capacity of the beam moment

1. enlarging the cross section to form the composite beam, planting the main reinforcement and the stirrup

2. externally bonded steel

3. bonding FRP composites

4. sticking steel plate

Insufficient bearing capacity of the negative bending moment at the end of the beam

5. bonding FRP composites

6. sticking steel plate

7. grouting the end of the beam with armpit, adding the axillary inclined bars and stirrup

Insufficient shear bearing capacity of beam end and oblique section

8. bonding FRP composite hoop

9. stick steel plate hoop

10. add steel corbel

11. additional shear reinforcement

Adding concrete beams

12. planting steel bars with positive and negative main reinforcement, and Liang Duan setting up steel corbel.


Seismic strengthening


Insufficient column ductilit

Circumferentially bonded fiber composite material constitutes a circumferential bundle, as an additional stirrup

Frame joints improve seismic construction measuresBeam end plate support

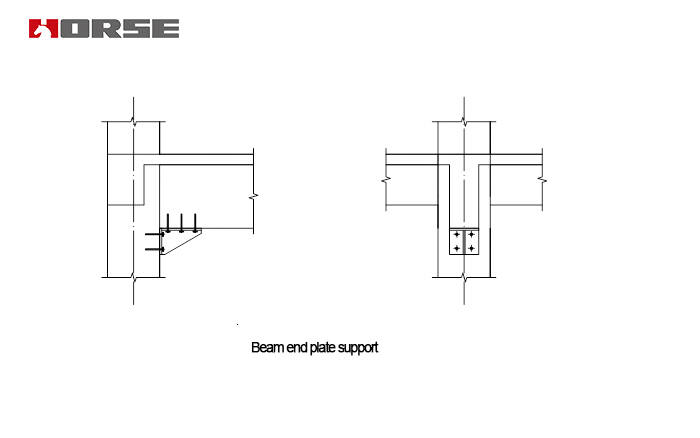

Beam end plate support
