Carbon Fiber Laminate Thickness for Structural Strengthening

carbon fiber reinforced polymer(CFRP) laminate

carbon fiber laminate strengthening carbon fiber laminate structural strengthening

Carbon fiber reinforced polymer laminate is pre-cured composite laminates, bonding onto the structure as externally strengthening reinforcement using epoxy resin as the adhesive.

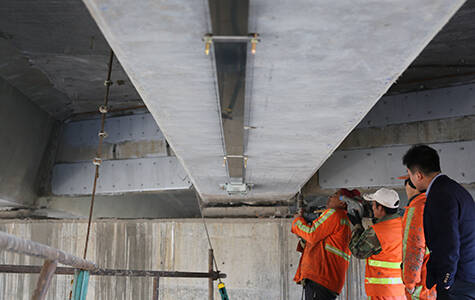

Carbon fiber laminate can be used to improve, enhance or repair the performance and resistance of concrete structures. In the right place, the reinforcing plate can be bonded to the concrete element to provide a significant increase in load-bearing capacity and stiffness.

Used for structural reinforcement, the conventional thickness is: 1.2mm, 1.4mm.

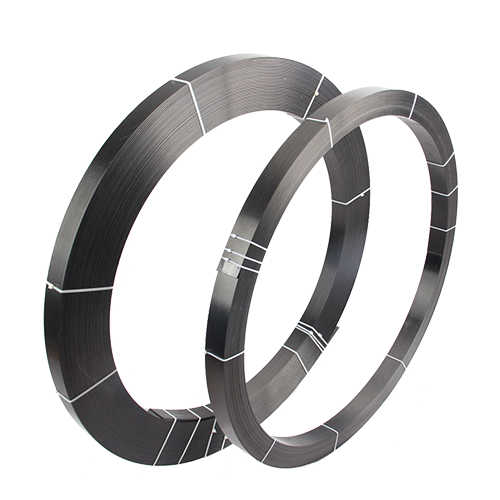

Horse Construction provide 4 types of carbon fiber lamiante.

Item	HM-1.2T Carbon Fiber Laminate	HM-1.4T Carbon Fiber Laminate	HM-2.0T Carbon Fiber Laminate	HM-3.0T Carbon Fiber Laminate
Thickness(mm)	1.2	1.4	2.0	3.0
Length(m)	100	100	100	100
Width(mm)	50、100	50、100	50、100	50、100
Density(g/cm3)	1.6

Base		Carbon fiber reinforced polymer with an epoxy resin matrix
Shelf Life		Unlimited (no exposure to direct sunlight)
Color		Black carbon fiber laminate
Tensile Strength	Mean Value	3100MPa
	Design Value	2600MPa
Modulus Of Elasticity	Mean Value	165,000MPa
	Design Value	160,000MPa
Elongation at Break		1.7%
Thickness		1.2mm, 1.4mm, 2.0mm, 3.0mm
Temperature Resistance		＞300° F(＞150℃）
Fiber Volumetric Content		＞68%
Density		0.058 lbs./in 3 (1.6g/cm3)
