Seismic reinforcement of elementary school with carbon fiber reinforced polymer

The project is a primary school in Beijing. Due to the long school years, it can not meet the new seismic requirements, so it is necessary to carry out structural inspection and seismic reinforcement of its teaching building and experimental building. It was decided to use Horse's carbon fiber for seismic reinforcement.

Project Overview

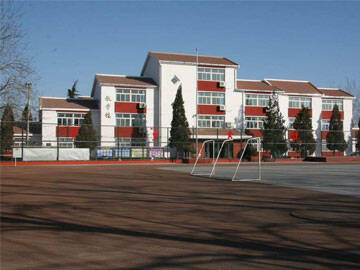

The project is a primary school in Beijing. Due to the long school years, it can not meet the new seismic requirements, so it is necessary to carry out structural inspection and seismic reinforcement of its teaching building and experimental building.




It was decided to use Horse's carbon fiber for seismic reinforcement.





Steps of Horse carbon fiber reinforcement

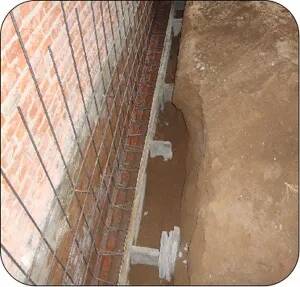

1.The foundation is enlarged and the foundation reinforcement is tied

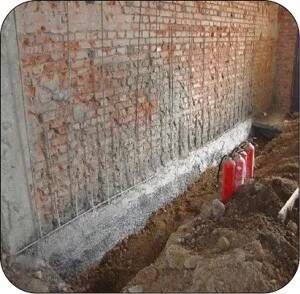

2.Backfill after the foundation is enlarged

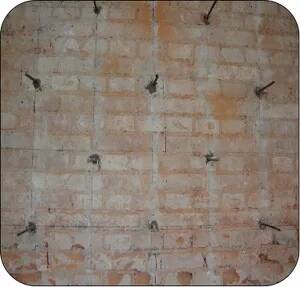

3. The wall is implanted with rebars

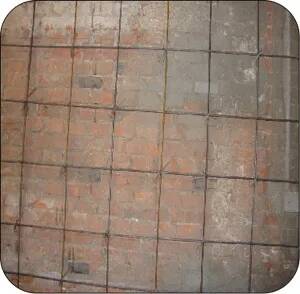

4.Binding and pulling knots of wall tie bars and steel mesh

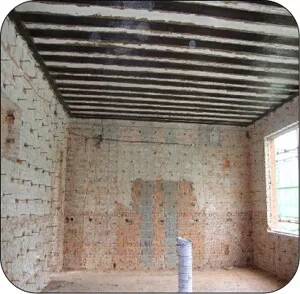

5. All the bottom of the slab is pasted with carbon fiber reinforced polymer

 slab is pasted with carbon fiber reinforced polymer

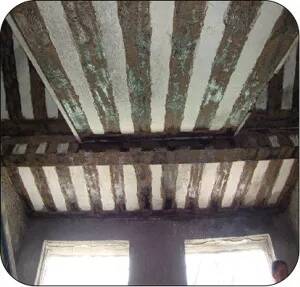

6. Carbon fiber reinforced stairs

Carbon fiber reinforced stairs

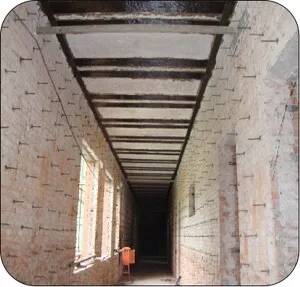

7. Carbon fiber reinforced at the bottom of corridor slab

Carbon fiber reinforced at the bottom of corridor slab


8. The bottom of the classroom slab is pasted with carbon fiber reinforcement

carbon fiber reinforcement

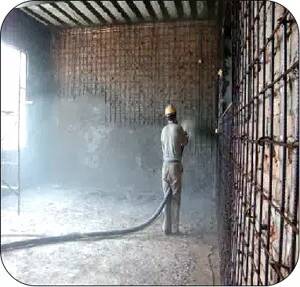

9. Shotcrete



10. Manual plaster to level the thickness
