Post install anchoring and rebar planting

In this project, the reinforcement is mainly for the post install anchoring and rebar planting, and the HM rebar anchoring adhesive is used in the rebar product, and the next process can be carried out after the rebar glue is completely cured to meet the requirements of the design.

The content of strengthening and retrofitting

1. according to the requirements of the design drawings (A district work room), the original structure column should be reinforced by steel jacketing with 100 x 6 angle steel and 40 x 4 thick plate with the /A-D axis to the A-F axis -0.1m to the first floor of the first floor of the axis to A-12 axis.



2. according to the requirements of the design drawings (A district work room), the A-10 axis to the A-12 axis /A-D axis to the A-F axis to increase the section of the new reinforced bar and the stirrup into the original structure.


3. according to the requirements of the design drawings (the layout of the interlayer foundation of the B district power distribution room), the new basic valve slabs are added to the B-6 ~ B-10 axis /B-A to B-B axis, and the short tendons are implanted after the original surface of the chisel is cleaned.

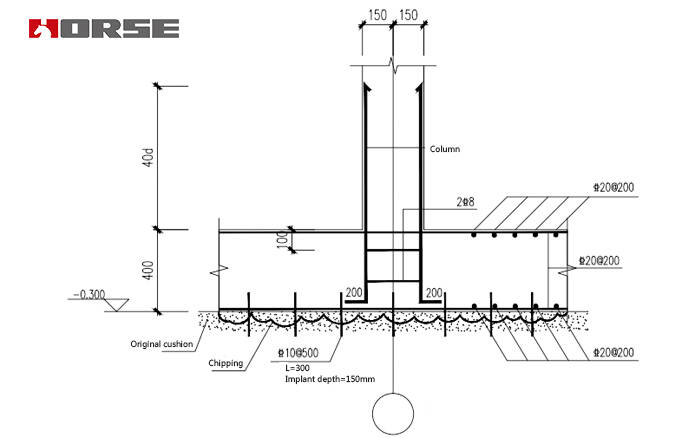

4. according to the requirements of the design drawings (the layout of the interlayer foundation of the B district power distribution room), the distance between the HRB400-10 steel bar is 500mm and the length 300mm is implanted into the 150mm after the hair cleaning of the cushion layer of the first running staircase.


5. according to the requirement of the design change notice, the wall of C-3 axis to C-4 axis, C9 axis and C10 axis should be opened by static drill. After the opening, the new HRB400-16 reinforcement is implanted into the original structure to reinforce the wall.


Strengthening treatment scheme

In this project, the reinforcement is mainly for the post install anchoring and rebar planting, and the HM rebar anchoring adhesive is used in the rebar product, and the next process can be carried out after the rebar glue is completely cured to meet the requirements of the design.


The original frame column is reinforced by steel jacketing. 100 x 6 angle steel and 4mm thick 40mm wide spacing 200mm are used by HM perfusion steel plate adhesive. After acceptance, the surface is required to be anticorrosive and fire-resistant.

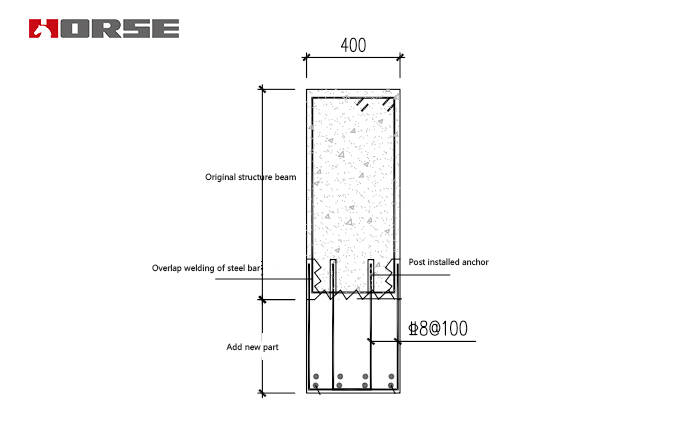

post install anchoring and rebar planting



post install anchoring
