Carbon fiber wrapping for beam-Insufficient bending and shearing capacity

Through the calculation analysis and engineering application of the concrete structure strengthened by bonded CFRP wrap, it is shown that the CFRP wrap strengthening method is an effective strengthening technology for concrete structure.

Engineering survey


A comprehensive building project of a Nanjing development company is located in the eastern suburb of the city. It has six floors. The bottom two floors are frames, and the top four floors are special-shaped frame columns. The total floor area is 8 000 M. The original design floor is a shopping mall, and the function of the above two floors is residential. Because of the change of using function, the floor load increases. According to the increased load, the whole structure is checked and calculated. The results show that the bending and shearing capacity of beams in the local scope of the second floor structure is insufficient, and the flexural bearing capacity of slabs is insufficient.


Determination of beam slab reinforcement scheme

As the building has been built and used, the rest of the floors must be in normal operation during the reinforcement period. After a comprehensive comparison of the schemes (see table 1), it was finally decided to use carbon fiber wrap paste and local bonded steel reinforcement method.

ItemStructural strengthening methods
FRP strengthening
Steel jacketingEnlarged section
Application
Widely

Restricted

--
WeightLight
HeavierHeavier
Strength
High strengthHigh
--
Reinforcement coordinationGood
GoodGood

Length and lap

The length is arbitrary, and the lap is convenient.

Limited length, welded connection

--
PriceHigh
HighLower

Durability

GoodLower
Good

Construction period

Short perio

Longer periodLonger period

Difficulty of operation

Simple operation

ComplexComplex
Impact on the outside worldSmallBig
Big


Reinforcing material


The bonded steel F W B adopts Q345 4 m steel plate, carbon fiber reinforced wrap 0.167 m thick (or 300 g/m) type fiber and matching adhesive grade A. The matching adhesive includes bottom adhesive, leveling epoxy putty and bonding resin.


Reinforcement design

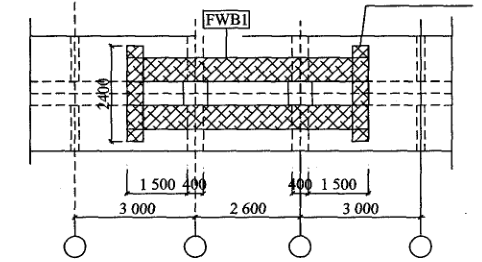

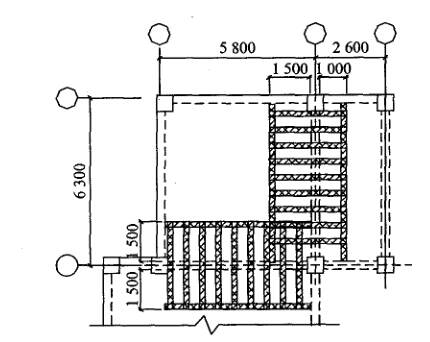

In the reinforced plane of the second floor, the bearing capacity of the negative bending distance of the floor should be increased by 25. According to the calculation and analysis, the shortage of the negative bending distance of the floor is that the CFRP wrap with a width of 200 m and a distance of 400 m is used as one layer, which is 2 500 m long. Liang Shouwan bearing capacity needs to be increased by 2O%, and 3 layers of fiber cloth with Liang Kuan should be adhered along the bottom of the beam. In addition, "U" shaped hoops are pasted on the brackets at both ends of the beam and on both sides of the secondary beam for shear reinforcement, and 200 m wide longitudinal bar entry anchorage is pasted on both ends of the "U" shaped hoops.




Reinforcement construction process and reinforcement effect


The surface of the steel plate pasted on the surface of the concrete component should be rust-proof, and the rust-proof material should be harmless to the steel plate and the adhesive.


The project actually pasted carbon fiber reinforced wrap about 145 m, completed within 15 working days. The thickest paste is the "U" - shaped hoop at the bottom of the beam, and 3 layers of 0.167 m m thick carbon fiber reinforced wrap. It basically does not increase the weight and geometric size of the structure, and meets the requirements of the owner from the aspects of time limit, use space and construction quality. Moreover, the bond between CFRP wrap and concrete surface is intact, the durability is good, and the reinforcement effect is remarkable.


Concluding remarks


Through the calculation analysis and engineering application of the concrete structure strengthened by bonded CFRP wrap, it is shown that the CFRP wrap strengthening method is an effective strengthening technology for concrete structure. Compared with the traditional reinforcement technology, carbon fiber wrap reinforced concrete technology has a good comprehensive economic performance. The application of carbon fiber reinforced concrete structure has broad application prospects.
