Structural carbon fiber fabric is mainly used for the shear, seismic and flexural reinforcement of concrete structures. It has been widely used in the reinforcement and repair of various structural types, structural shapes, seismic reinforcement, and structural reinforcement of nodes, such as buildings, bridges, and tunnels. Structural carbon fiber fabric has strong adaptability, good durability, high strength, wide application range, simple construction, time-saving, labor-saving, efficient and convenient. Nevertheless, there are still many points that need attention in the construction process of using structural carbon fiber fabric to reinforce.

How to use carbon fiber fabric for structrual strengthening?

1.Unload the load first;

2. Treatment of the base surface of the reinforcement member;

3. Brush primer;

4. Paste structural carbon fiber fabric;

5. Surface protection.

Unload

When using fiber-reinforced composite materials for reinforcement, measures should be taken to unload as much as possible. Its purpose is to reduce the influence of the secondary stress, that is, to reduce the strain after the fiber composite material, so that the reinforced structure can make full use of the strength of the fiber material.

Base surface treatment for reinforcement construction

Remove the incomplete and damaged part of the surface of the concrete component, repair and restore the incomplete part of the component that has been chipped, cleaned and exposed, so that the reinforcement component is exposed to a flat and clean base surface.

Apply primer

Apply the primer (adhesive) evenly on the concrete surface of the defective part with a brush.

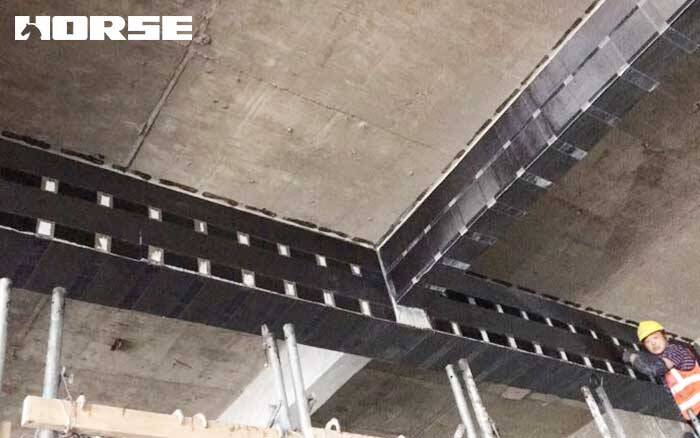

Paste structure carbon fiber fabric

Cut structural carbon fiber fabric to the size required by the design. Prepare impregnating resin and apply it evenly on the components to be pasted. Rolling along the carbon fiber direction several times to squeeze out the air bubbles, so that the impregnating resin fully penetrates the structural carbon fiber fabric. The surface of the structural carbon fiber fabric is evenly coated with impregnated resin.

Surface protection

Dispose of in accordance with relevant regulations, and ensure that the protective material and the structural carbon fiber fabric are reliably bonded.

To ensure the effect of structural carbon fiber fabric reinforcement, in addition to operating as required, the most important step is the choice of structural carbon fiber fabric. The high-quality structural carbon fiber fabric has flat tow, smooth fabric surface, non-disordered cutting, and good anisotropy. It can be bent and wound to form, and is suitable for strengthening various curved surfaces and special-shaped components. This is the construction convenience of high-quality structural carbon fiber fabric. In addition, the mechanical properties, bonding properties and durability of structural carbon fiber fabric are closely related to the service life of the later reinforcement effect.

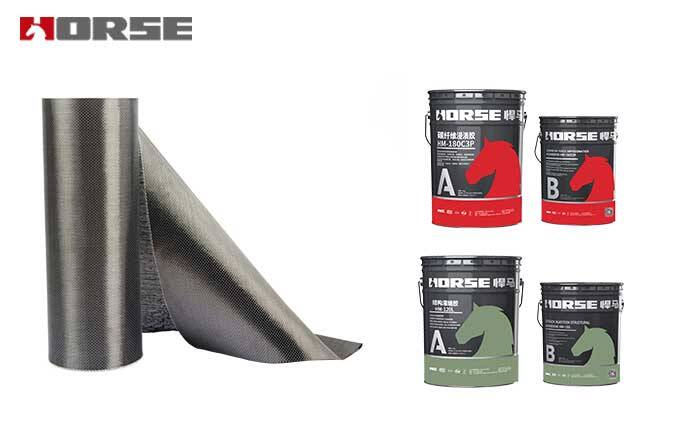

Shanghai Horse Construction Co., Ltd is a professional manufacturer of structural strengthening materials. Its main products are Horse carbon fiber materials and all kinds of epoxy resin adhesive.

Horse construction is the pioneer of the reinforcement material industry in China and has been participating in developing industry standards. It has close cooperation with experts from Tsinghua University, Tongji University, Syracuse University etc. in product testing, researching and development.

Started from 2006, Horse Construction has been focused on structural strengthening materials for more than 10 years.

Mr. Han Song, the general manager of Horse Construction, has the great mission "producing the highest quality structural strengthening materials, removing safety loopholes of concrete structures to save lives and buildings" . Under that mission, every one in Horse Construction is working extremely hard to provide the best products and services for our clients.
