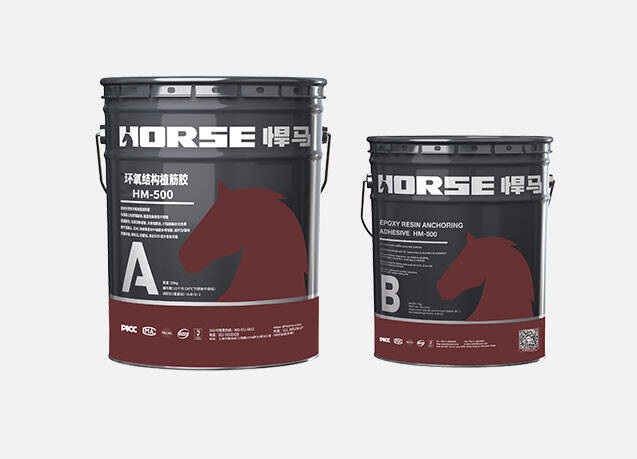

ANCHOR ADHESIVE





Key Characteristics

• Modified epoxy resin, high strength, corrosion resistance, acid-alkali resistance, aging resistance;

• Curing at room temperature, easy to install;

• Wide adhesive range, such as concrete, stone materials and metals;

• No expansion or contraction after curing, no destroy to substrate;

• Environment friendly, non-toxic, do not contain volatile solvents.

Key Characteristics

• Modified epoxy resin, high strength, corrosion resistance, acid-alkali resistance, aging resistance;

• Curing at room temperature, easy to install;

• Wide adhesive range, such as concrete, stone materials and metals;

• No expansion or contraction after curing, no destroy to substrate;

• Environment friendly, non-toxic, do not contain volatile solvents.

Application Range

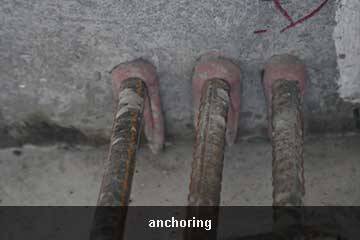

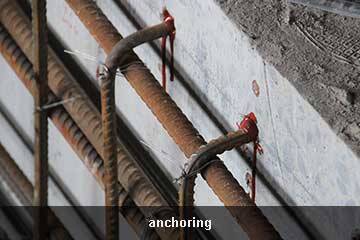

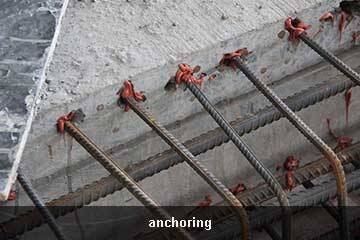

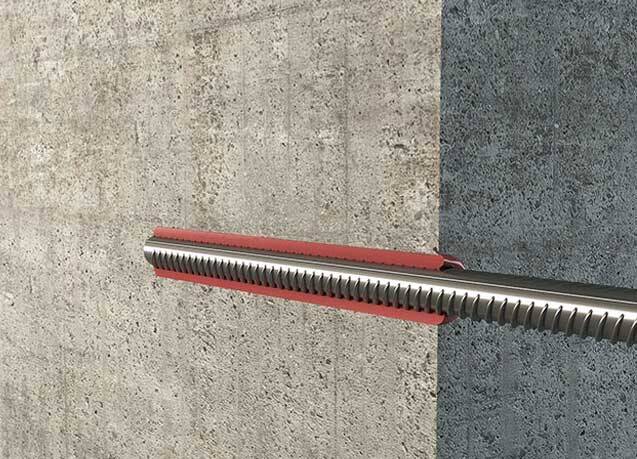

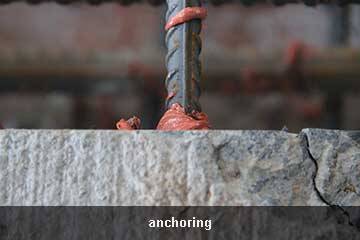

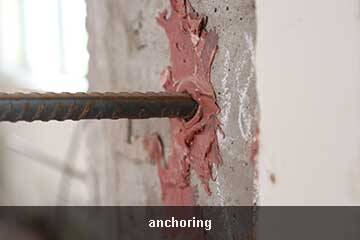

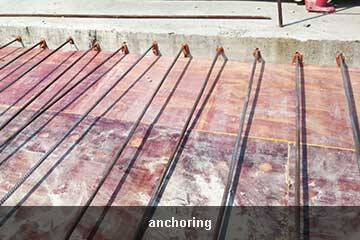

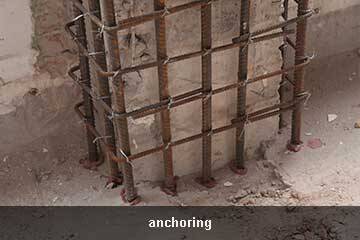

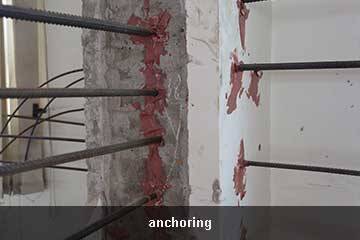

• The steel bar planting and the anchor bolt anchoring of many kinds of building structures, the reinforcement of engineering buildings;

• The basic anchoring of many equipments, the anchoring and supporting of mine tunnel top and wall, the anchoring of railways and rails;

• The insulation anchoring of rails, the installation anchoring of curtain walls, chemical engineering equipments, pipelines, advertisement boards and so on;

• The anchoring of water conservancy facilities, docks, public roads, bridges and other projects.

Application Range

• The steel bar planting and the anchor bolt anchoring of many kinds of building structures, the reinforcement of engineering buildings;

• The basic anchoring of many equipments, the anchoring and supporting of mine tunnel top and wall, the anchoring of railways and rails;

• The insulation anchoring of rails, the installation anchoring of curtain walls, chemical engineering equipments, pipelines, advertisement boards and so on;

• The anchoring of water conservancy facilities, docks, public roads, bridges and other projects.

Transportation and Storage

• The carbon fiber adhesive should store in a cool and dry place,storage period is 12 months. If storage period exceed 12 months, the product should be tested, if the physical and mechanical properties meet the standard requirements,you can still continue to use it.

• This product is non-toxic, belong to non-dangerous goods, transport as a goods, transport as a general chemical building materials

Transportation and Storage

• The carbon fiber adhesive should store in a cool and dry place,storage period is 12 months. If storage period exceed 12 months, the product should be tested, if the physical and mechanical properties meet the standard requirements,you can still continue to use it.

• This product is non-toxic, belong to non-dangerous goods, transport as a goods, transport as a general chemical building materials

Attention Points

• Mix proper quantity, use up in the applicable period.

• If there is any left, the lids of A B should be covered. Do not expose it in the air.

• Construction workers should take certain protective measures.

• The construction environment should be kept ventilated during construction.

• Avoid direct sunlight and high temperature.

Attention Points

• Mix proper quantity, use up in the applicable period.

• If there is any left, the lids of A B should be covered. Do not expose it in the air.

• Construction workers should take certain protective measures.

• The construction environment should be kept ventilated during construction.

• Avoid direct sunlight and high temperature.

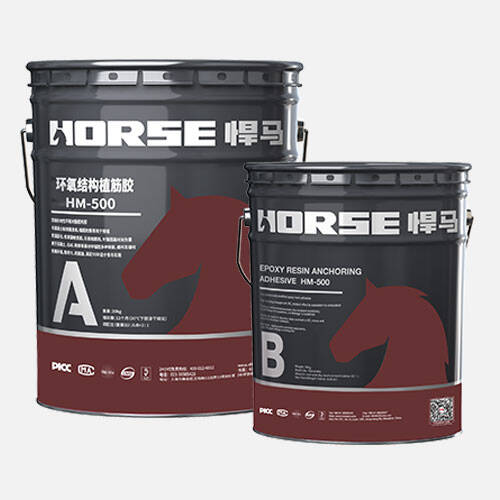

HM-500 Structure Anchor Adhesive Performance Parameters

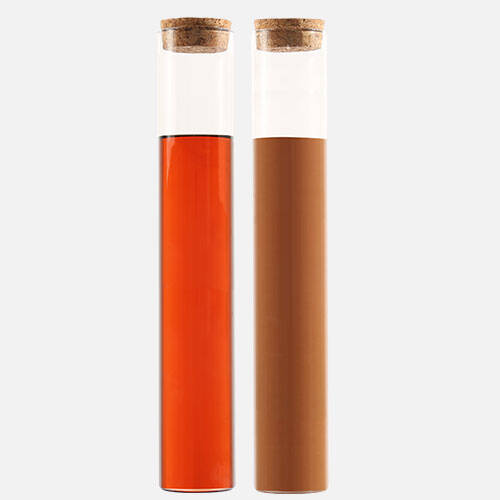

AppearanceA(main agent): red or white paste

B(curing agent): brown paste
Viscosity of mixture≥22Pa·s
Density of curing material1.60±0.10g/cm3
Mixture ratio(weight ratio)2:1
Storage periodtwelve months

HM-500 Structure Anchor Adhesive Operable time and curing time
Ambient temperature(℃)-501020≥30
Operable time(min)6045302520
Curing time(h)724824126

HM-500 Structure Anchor Adhesive Performance indexes

itemindexitemindex

Colloidal

performance

Splitting tensile strength(MPa)≥8.5Thixotropic index≥4.0
Bending Strength(MPa)≥50Sagging mobility≤2.0mm
Compressive strength(MPa)≥60Distortion temperature≥65℃

Adhesion

performance

Steel-steel(steel sleeve)tensile anti-shear strength(MPa)≥10

Under the constraint drawing condition,

ribbed steel bars and C30, φ25, L=150mm(MPa)

≥11
Adhesion strength of concrete C60, φ25, L=125mm(MPa)≥17
Steel-steel T impact stripping length
≤25mm
Non-volatile matter content(solid content)(%)
≥99

Long-term

performance

Wet and heat ageing

resistance ability

Compared with the short-term results at room temperature,

the decrease rate of shear strength:≤12%

Heat aging resistance

Compared with the short-term results at same temperature 10min,

the decrease rate of shear strength: ≤5%

Freezing and thawing

resistance ability

Compared with room temperature, short-term results,

the shear strength decrease rate is not greater than 5%

Fatigue stress

resistance ability

After2×106 times continuous sine wave fatigue loads,

specimen does not destroy

Resistance to stress

for a long time

Steel - steel tensile shear specimens does not destroy,

and creep deformation value is less than 0.4 mm

Resistance to

corrosion medium

Resistance to salt

fog effect

Compared with the control group, the strength decrease rate: ≤5%,

and shall not have cracks or come unglued

Alkaline medium

resistance ability

Compared with the control group, the strength does not decrease,

and as the concrete damage, and shall not have cracks or come unglued

Acid medium

resistance ability

Concrete damage, and shall not have cracks or degumming
