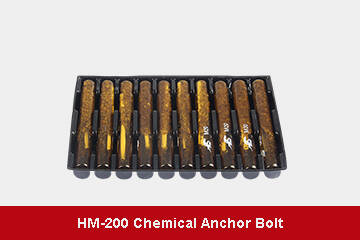

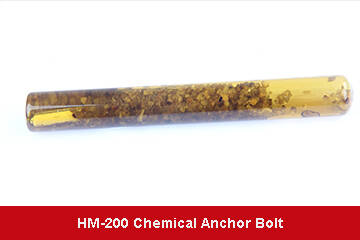

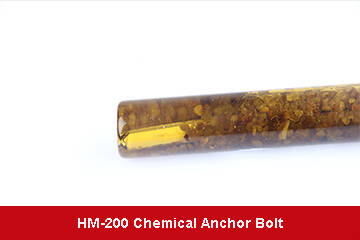

CHEMICAL ANCHOR BOLT





Product Characteristics

• Anti-fatigue, anti-aging, corrosion resistance, no creep;

• Strong cohesion, high drawing force, the effect is the same as embedded;

• Wide use temperature range, can construct at -10℃ ~ 40℃;

• Used for small spacing, margins, narrow spaces;

• Applicable to various substrates, concrete, rock, aluminum material, etc.;

• Non-expansion chemical bond strength, not destroy the substrate;

• Convenient and fast construction, safe and environment-friendly use.

Product Characteristics

• Anti-fatigue, anti-aging, corrosion resistance, no creep;

• Strong cohesion, high drawing force, the effect is the same as embedded;

• Wide use temperature range, can construct at -10℃ ~ 40℃;

• Used for small spacing, margins, narrow spaces;

• Applicable to various substrates, concrete, rock, aluminum material, etc.;

• Non-expansion chemical bond strength, not destroy the substrate;

• Convenient and fast construction, safe and environment-friendly use.

Application Range

• Various types of curtain wall bracket fixation: for fixation of glasses, stones, aluminum curtain walls and all kinds of composite material curtain wall steel brackets, bases and keels;

• The fixation of machines and equipements;

• Connection and fixation of steel structures and concrete structures;

• The fixation of chemical engineer pipes, equipment pipelines, crane rails and other building equipments.

Application Range

• Various types of curtain wall bracket fixation: for fixation of glasses, stones, aluminum curtain walls and all kinds of composite material curtain wall steel brackets, bases and keels;

• The fixation of machines and equipements;

• Connection and fixation of steel structures and concrete structures;

• The fixation of chemical engineer pipes, equipment pipelines, crane rails and other building equipments.






Installation Data Table
Anchor

Specifications

Hole

Diameter

Hole

Depth

Bolt

Length

Minimum

Substrate

Thickness

Maximum

Fixture

Thickness

Fixture

Hole

Diameter

Recommended

Tightening

Torque

Design Value

of Tensile

Strength

Design Value

of Shear

Strength

mm
mmmmmmmmmmNmkNkN
M10129013013020122013.812.6
M121411016016027144019.818.3
M161812519017535188028.934.6
M2025170260220652515052.454.0
M2428210300270632820075.577.8
M30352803803407035400121.3163.7
Guring Time Schedule
Ambient temperature-5℃0℃5℃10℃20℃30℃40℃
Gel time30min20min14min9min5min4min2min
Curing time6hour3hour90min70min45min25min15min
Influence coefficient of concrete strength
LabelC25C30C35C40
Coefficient0.951.01.051.10
