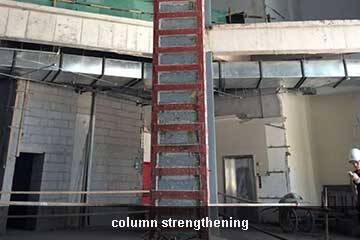

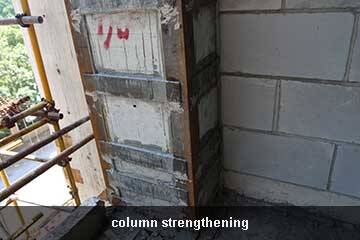

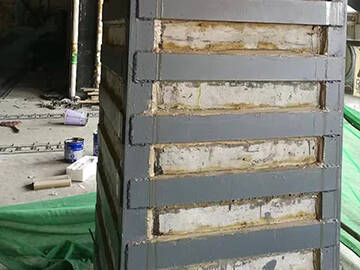

steel jacketing of rcc columns

Characteristics of Adhesives

• Modified epoxy resin, without any solvent, safe and non-toxic;

• Fast load to the building structure, strong bonding force, large compression and tensile resistance;

• Construction in wide temperature range, no precipitation, simple construction, good process performance;

• Good acid-alkali resistance and aging resistance properties, low moisture sensitivity, small contraction;

• Suitable for almost all building substrates.

Characteristics of Adhesives

• Modified epoxy resin, without any solvent, safe and non-toxic;

• Fast load to the building structure, strong bonding force, large compression and tensile resistance;

• Construction in wide temperature range, no precipitation, simple construction, good process performance;

• Good acid-alkali resistance and aging resistance properties, low moisture sensitivity, small contraction;

• Suitable for almost all building substrates.

steel jacketing of rcc columns

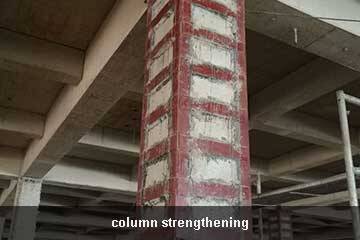

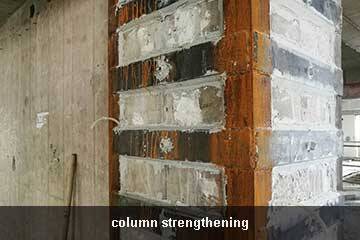

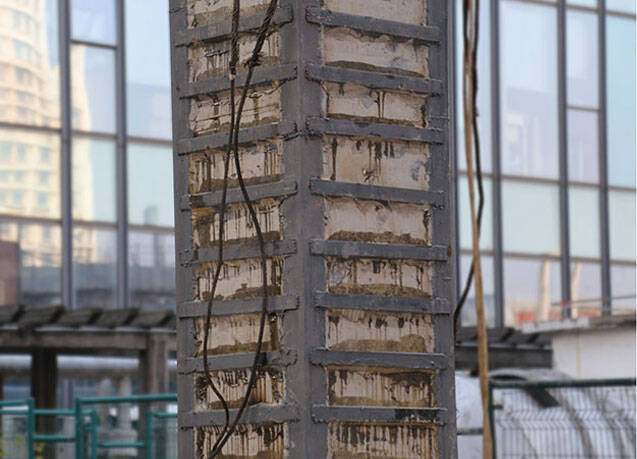

steel jacketing of columns

Application Range

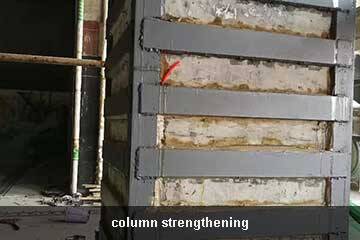

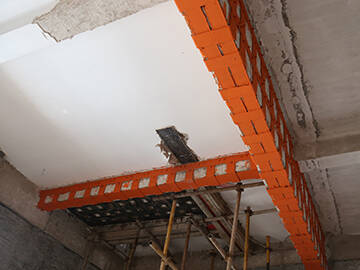

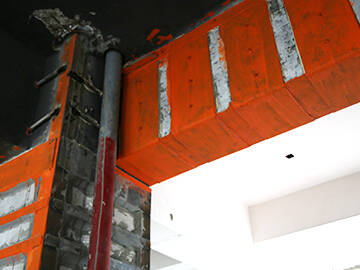

Epoxy bonded steel plate for structural strengthening;Steel jacketing

• Steel-bonded reinforcement of reinforced concrete, old and new buildings' bending drawknot components;

• Wet steel-encased reinforcement;

• Concrete crack pouring or casting steel-bonded reinforcement;

• Adhesion of other building components.

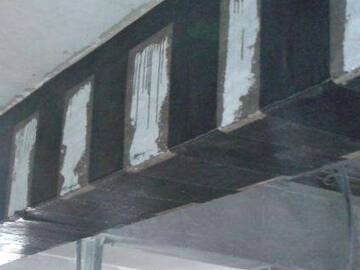

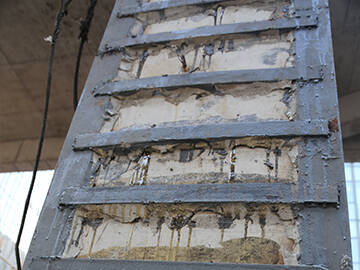

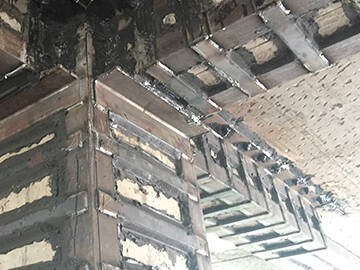

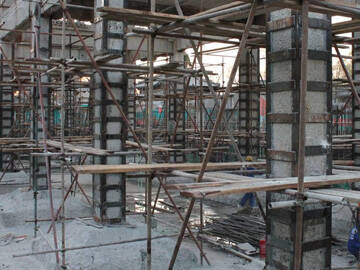

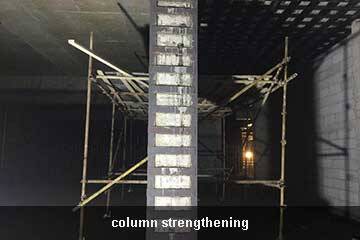

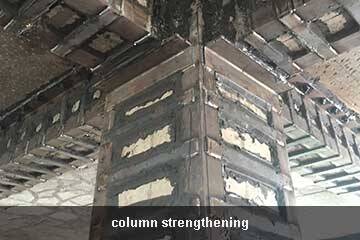

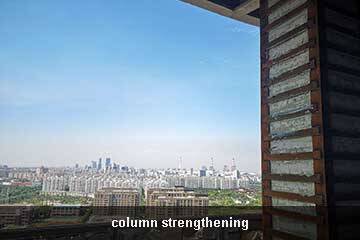

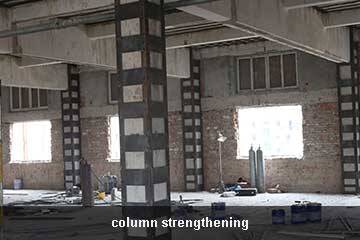

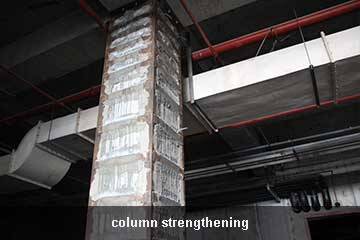

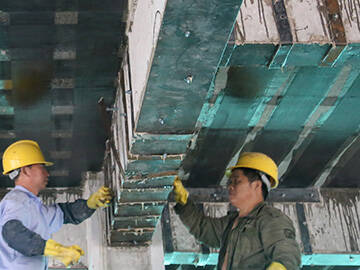

• Steel jacketing:beam jacketing,column jacketing

steel jacketing of columns

Application Range

Epoxy bonded steel plate for structural strengthening;Steel jacketing

• Steel-bonded reinforcement of reinforced concrete, old and new buildings' bending drawknot components;

• Wet steel-encased reinforcement;

• Concrete crack pouring or casting steel-bonded reinforcement;

• Adhesion of other building components.

• Steel jacketing:beam jacketing,column jacketing

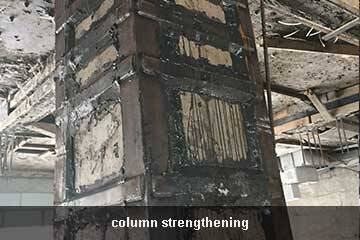

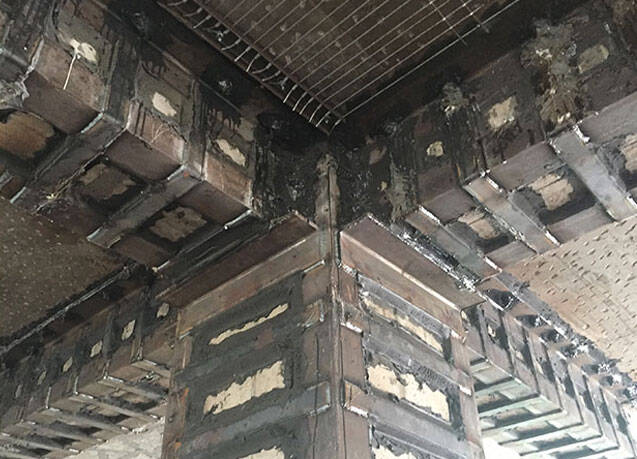

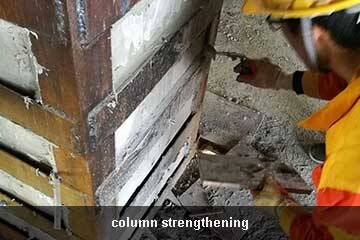

steel jacketing retrofitting

How to Use

• Drilling hole
• Preparing the surface
• Installing the steel frame
• Sealing and setting gas vent
• Mixing and injecting the adhesive
• Curing and maintenance
• Examination
• Applying anti-corrosion measures

How to Use

• Drilling hole
• Preparing the surface
• Installing the steel frame
• Sealing and setting gas vent
• Mixing and injecting the adhesive
• Curing and maintenance
• Examination
• Applying anti-corrosion measures

steel jacketing retrofitting
steel jacketing adhesive

Transportation and Storage

• Store in dry and clear store house of ambient temperature 5-25℃,should not pile up in the open air or rain,not damage the package.A,B component should be kept separate to avoid mixing.From the date of production, effective storage period is 12 months.

• The structural strengthening adhesive belong to non-dangerous goods,transport as a general chemical building materials,should not damage the package,exposure ,or rain,not tilt or invert in transportation.

steel jacketing adhesive

Transportation and Storage

• Store in dry and clear store house of ambient temperature 5-25℃,should not pile up in the open air or rain,not damage the package.A,B component should be kept separate to avoid mixing.From the date of production, effective storage period is 12 months.

• The structural strengthening adhesive belong to non-dangerous goods,transport as a general chemical building materials,should not damage the package,exposure ,or rain,not tilt or invert in transportation.

Attention Points

• The workers should take necessary product measures, such as wearing mask, gloves, goggles,etc. Notice fire prevention and maintain good ventilation on scene.

• If it accidentally touched the skin or clothes, acetone can be used to wipe at once, and then a great deal of clear water is used to flush.

• If accidentally swallowed or splashed into the eyes, please seek medical service at once.

Attention Points

• The workers should take necessary product measures, such as wearing mask, gloves, goggles,etc. Notice fire prevention and maintain good ventilation on scene.

• If it accidentally touched the skin or clothes, acetone can be used to wipe at once, and then a great deal of clear water is used to flush.

• If accidentally swallowed or splashed into the eyes, please seek medical service at once.

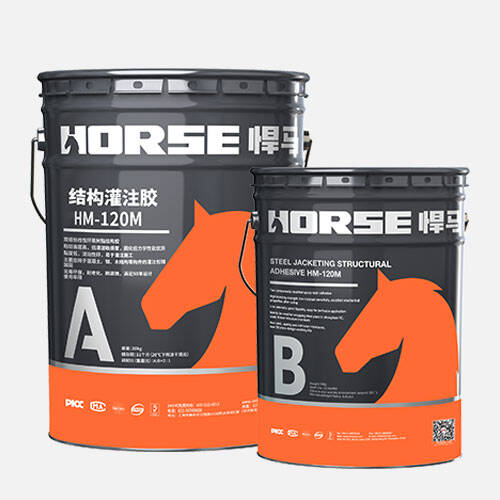

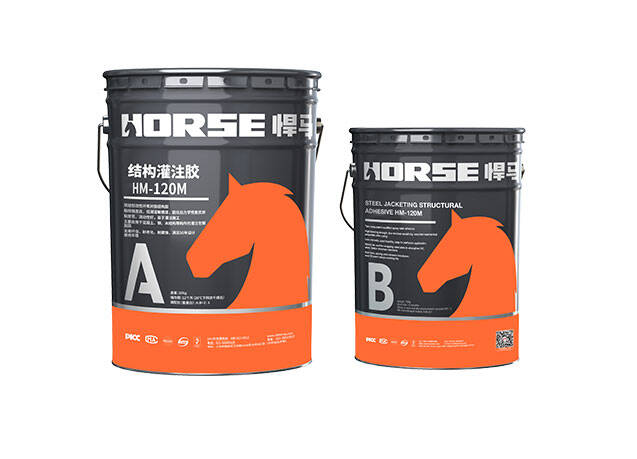

HM-120M Structural Perfusion Adhesive

HM120M Steel Jacketing Epoxy.pdf


Brochure

Horse Steel Bonding System.pdf



HM-120M Structural Perfusion Adhesive Technical Parameters
Basic characteristics
ComponentComponent A,B
Weight ratioA:B=2:1
Package:Part A (kgs)20
Package:Part B (kgs)10
Viscosity(MPa·s)Component A:  600        Component B: 2100
Density(g/cm3)1.2±0.1
Operable time (25℃,h)2
Finger touch dry time (25℃,h)12
Applicable period (25℃,min)60
Mechanical Properties
Colloidal compressive strength(MPa)≥65.0
Colloidal tensile strength(MPa)≥30.0
Steel-steel anti-shear strength(MPa)≥15.0
Steel-steel tensile strength(MPa)≥33.0
Steel-concrete tensile strength(MPa)C50 concrete damage
Steel-concrete anti-shear strength(MPa)C50 concrete damage




HM-120M Structural Perfusion Adhesive Performance indexes

itemindex
Colloidal performance
Tensile strength (MPa)≥30

Tensile elastic modulus (MPa)≥2.5×103

Elongation (%)≥1.2

Bending strength (MPa)≥45

Compressive strength (MPa)≥65

Non-volatile matter content≥99%

Distortion temperature≥65℃
Adhesion performanceSteel - steel tensile anti-shear strength(MPa)≥15

Steel - steel uneven tear strength(kN/m)≥16

Steel - steel tensile adhesion strength(MPa)≥33

Pulling adhesion strength along with concrete(MPa) ≥2.5

Steel - steel T impact stripping length≤25mm
Non-volatile matter content (solid content) (%)≥99


3D Video of HM-120M Structural Perfusion Adhesive(click it)


1.drilling hole
2.preparing the surface
3.installing the steel frame
4.sealing and setting gas vent
5.mixing and injecting the adhesive
6.curing and maintenance
7.examination
8.applying anti-corrosion measures
