Beam Retrofitting with Carbon Fiber Fabric

In response to the needs of Party A's, the beams and columns of the houses need reinforced,the beams of the original load-bearing walls are reinforced with carbon fiber fabric.

Project overview

In response to the needs of Party A's, the beams and columns of the houses need reinforced,the beams of the original load-bearing walls are reinforced with carbon fiber fabric.

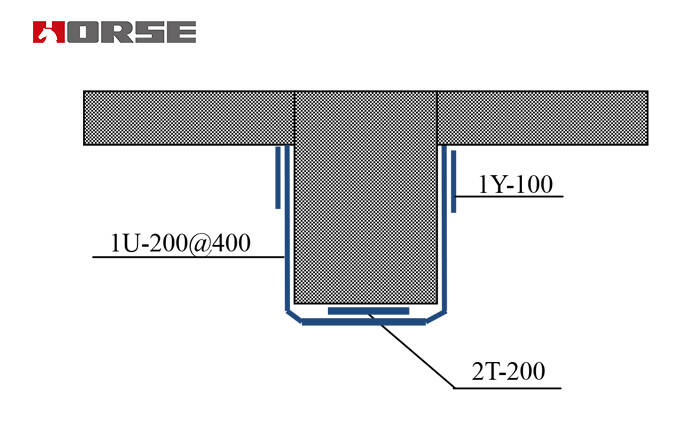

beam strengthening with carbon fiber fabric

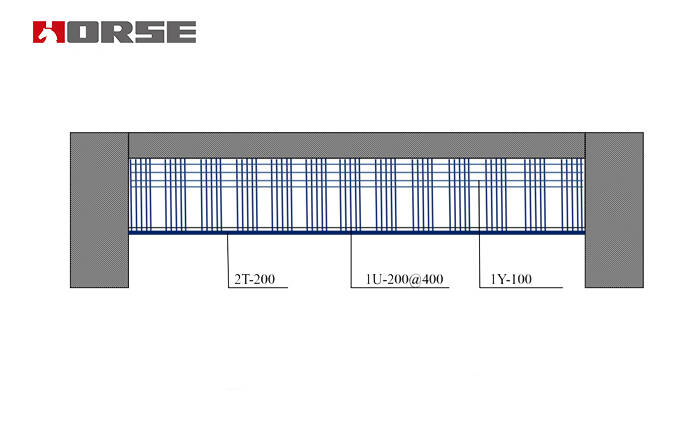

beam strengthening with carbon fiber fabric

beam strengthening with carbon fiber fabric

Structural strengthening materials

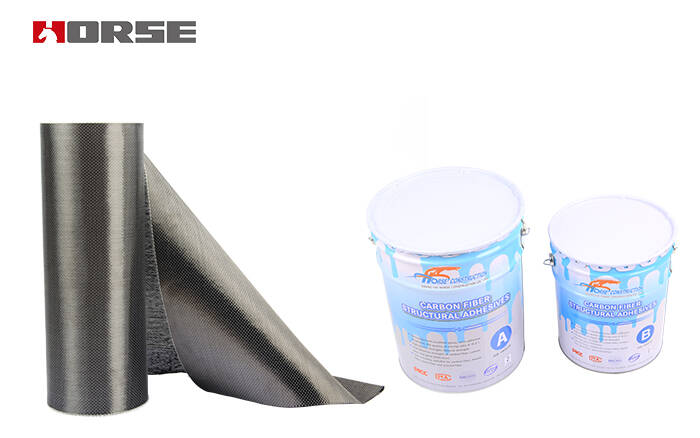

Carbon fiber is A grade of high strength carbon fiber cloth, 300g/m2, 0.167mm thickness, the use of HM-30 carbon fiber, carbon fiber adhesive is also A grade adhesive


HM unidirectional(UD) carbon fiber cloth


HM unidirectional(UD) carbon fiber cloth is stronger than steel

1.Light self weight

2.High strength 3

.High modulus

4.Flexible

5.Environmental-friendly

6.Long shelf life

7.High toughness

8.Ani high temperature

9.Easy to install

10.For shear strengthening, confinement strengthening, flexural strengthening
